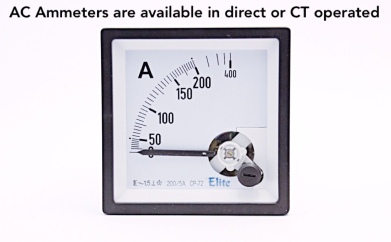

AC Analogue Meters (moving iron) - sizes 48/72/96/144mm

Ammeters

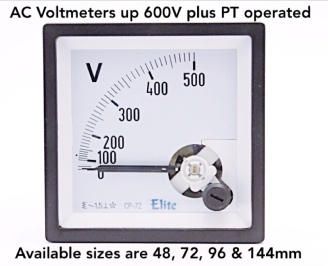

Voltmeters

DC Analogue Meters (moving coil) - sizes 48/72/96/144mm

Ammeters

Voltmeters

Above meters also available in 240 Degree

DC Round Back Meters

Ammeters

Voltmeters

Maximum Demand Meters - 2 needle

Maximum Demand with Instantaneous - 3 needle

Frequency Meters (Pointer Type) - sizes 72/96mm

Frequency Meters (Reed Type) - sizes 72/96mm

Running Hour Meters (48/72/96mm)

10-50V DC (only available in 48mm)

24/110/220/380/525V AC

Digital Panel Meters - size 48/72/96/96X48mm

AC/DC Ammeter or Voltmeter 3.5 digit

AC/DC Ammeter or Voltmeter 4.5 digit

AC/DC Frequency Meter 3 digit

RPM Indicator 4 digit

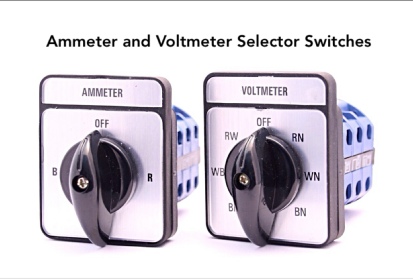

Selector Switches

Ammeter (3 CT's)

Voltmeter 4 position (phase to phase)

Voltmeter 7 position (phase to phase & phase to neutral)

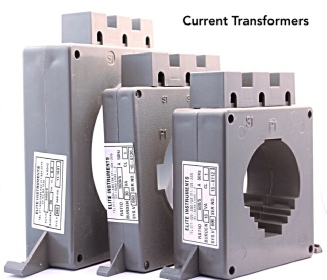

Current Transformers SAN/IEC 60044-1 (1A and 5A)

SNP - up to 50A 2.5VA Class 1

BNP - up to 100A 10Va Class 1

MN1 ID 32mm - 50A up to 400A

MN2 ID 36mm - 50A up to 800A

BR1 ID 63mm - 200A up to 2000A

BR2 ID 70mm - 400A up to 2500A

BR3 ID 110mm - 400A up to 3000A

BC4 ID 110mm - 1000A up to 4000A

Summations 1+1/1A & 5+5/5A

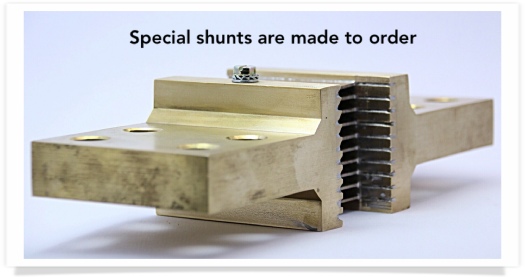

Shunts (50mV & 60mV)

up to 3000A

Wattmeters (96mm)

220V Single Phase 5A CT

110V & 380V 3 Phase 3 wire Balanced 1 X 5A CT

110V & 380V 3 Phase 3 wire Balanced 2 X 5A CT

380V 3 Phase 4 wire unbalanced 3 X 5A CT

Power Factor Meter (96mm) 1A or 5A

110/380/525V 3 Phase

220V Single Phase

Current Transformer Transducers 4-20mA output

TX1 350

TX1 750

CTX 03

Electronic Kilowatt Hour meters are available

Extras

On AC Ammeters

Colour frames

Zero voltmeters

Red adjustable pointer

Red line on scale

On DC Meter

Centre or off-set 0

Special scales e.g. % r/min etc.

Special range e.g. 75mV, 20mA etc.

Colour band

Trim pot

Rectify AC to DC

Maximum Demand Meters

Saturation CT
